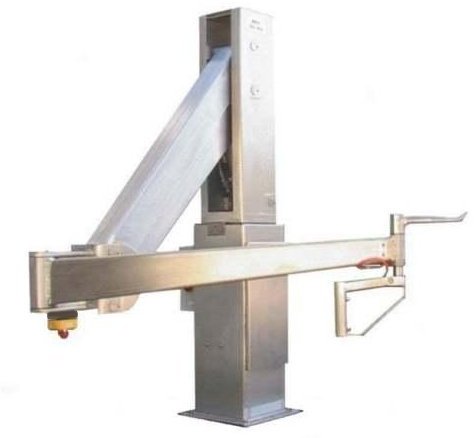

Hydraulic Carcass Loader

The Hydraulic Carcass Loader provides the operator with a quick and easy way to load carcasses from the dispatch bay directly into trucks without having any health and safety risk to the operator as opposed to loading it by hand. It can also be used at receiving of carcasses to offload and can also be integrated into the truck.

The Hydraulic Carcass Loader is entirely made of stainless steel for increases hygiene due to direct contact with the carcass and for increased durability.

Made in the EU

Specifications:

• Height of the hook relative to the ground: max.2680 mm, min. 820mm
• Working stroke: 1860 mm
• Front arm rotation: 260°
• Swivel head rotation: 270°
• Total rotation: 320°
• Speed of raising and lowering the arm: 0.3 m/sec
• Lifting capacity: 190 kg maximum
• Weight of the device: 310 kg
• Power supply: 400V three-phase
• Power: 3 kW
